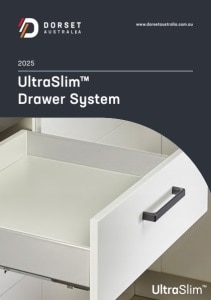

UltraSlim™ Drawer System www.dorsetaustralia.com.au 2025
UltraSlim™ Drawer System 02 © Copyright 2025 All Rights Reserved. Specifications subject to change without notice. UltraSlim™ Drawer System | UltraSlim 90 Drawer UltraSlim 90 Drawer UltraSlim 90 Drawer •• Single-layer UltraSlim wall drawer with full-extension synchronized runners •• Soft close runners •• Drawer side height: 90mm •• Load capacity of 30kg •• Quick assembly & disassembly •• Silent runners •• Box Qty: 5 sets 90mm High Kit Part No. Codes Part No. Finish Length Weight Pallet Qty Sold Per USD9025.MWH Matt White 250mm 30kg 180 set USD9030.MWH Matt White 300mm 30kg 180 set USD9035.MWH Matt White 350mm 30kg 150 set USD9040.MWH Matt White 400mm 30kg 120 set USD9045.MWH Matt White 450mm 30kg 120 set USD9050.MWH Matt White 500mm 30kg 120 set USD9055.MWH Matt White 550mm 30kg 120 set
UltraSlim™ Drawer System 03 1300 121 800 | www.dorsetaustralia.com.au © Copyright 2025 All Rights Reserved. Specifications subject to change without notice. UltraSlim™ Drawer System | UltraSlim 90 Drawer UltraSlim 90 Drawer Panel Cutting Dimensions Internal Width of Cabinet Drawer Front Drawer Bottom Drawer Back Key: NL = Nominal Side Length LT = Inside Cabinet Depth 37 LT=NL+5 4 27 16 Min37 25 Min110 90 LW-16 32 57.5 22 20.5 12 12 32 h=63 Drawer back LW Min57.5 32 16mm LW-16 h=63 16mm LW-16 NL-20 Runner Installation Cabinet edge 224 37 4 25 37 6.3 Ø 550mm 500mm 450mm 400mm 350mm 300mm 250mm Nominal Length 128
UltraSlim™ Drawer System 04 © Copyright 2025 All Rights Reserved. Specifications subject to change without notice. UltraSlim™ Drawer System | UltraSlim 128 Drawer UltraSlim 128 Drawer UltraSlim 128 Drawer •• Single-layer UltraSlim wall drawer with full-extension synchronized runners •• Soft close runners •• Drawer side height: 128mm •• Load capacity of 30kg •• Quick assembly & disassembly •• Silent runners •• Box Qty: 5 sets 128mm High Kit Part No. Codes Part No. Finish Length Weight Pallet Qty Sold Per USD12825.MWH Matt White 250mm 30kg 165 set USD12830.MWH Matt White 300mm 30kg 165 set USD12835.MWH Matt White 350mm 30kg 150 set USD12840.MWH Matt White 400mm 30kg 105 set USD12845.MWH Matt White 450mm 30kg 105 set USD12850.MWH Matt White 500mm 30kg 105 set USD12855.MWH Matt White 550mm 30kg 90 set
UltraSlim™ Drawer System 05 1300 121 800 | www.dorsetaustralia.com.au © Copyright 2025 All Rights Reserved. Specifications subject to change without notice. UltraSlim™ Drawer System | UltraSlim 128 Drawer UltraSlim 128 Drawer Panel Cutting Dimensions Drawer Front Drawer Bottom Drawer Back Key: NL = Nominal Side Length LT = Inside Cabinet Depth Internal Width of Cabinet 20.5 12 12 32 32 27 16 Min37 25 Min148 128 LW-16 32 57.5 22 h=101 LW Drawer back 37 LT=NL+5 4 Runner Installation Cabinet edge 224 37 4 25 37 6.3 Ø 550mm 500mm 450mm 400mm 350mm 300mm 250mm Nominal Length 128
UltraSlim™ Drawer System 06 © Copyright 2025 All Rights Reserved. Specifications subject to change without notice. UltraSlim™ Drawer System | UltraSlim 175 Drawer UltraSlim 175 Drawer UltraSlim 175 Drawer •• Single-layer UltraSlim wall drawer with full-extension synchronized runners •• Soft close runners •• Drawer side height: 175mm •• Load capacity of 30kg •• Quick assembly & disassembly •• Silent runners •• Box Qty: 5 sets 175mm High Kit Part No. Codes Part No. Finish Length Weight Pallet Qty Sold Per USD17525.MWH Matt White 250mm 30kg 135 set USD17530.MWH Matt White 300mm 30kg 135 set USD17535.MWH Matt White 350mm 30kg 120 set USD17540.MWH Matt White 400mm 30kg 90 set USD17545.MWH Matt White 450mm 30kg 90 set USD17550.MWH Matt White 500mm 30kg 90 set USD17555.MWH Matt White 550mm 30kg 50 set
UltraSlim™ Drawer System 07 1300 121 800 | www.dorsetaustralia.com.au © Copyright 2025 All Rights Reserved. Specifications subject to change without notice. UltraSlim™ Drawer System | UltraSlim 175 Drawer UltraSlim 175 Drawer Panel Cutting Dimensions Runner Installation Drawer Front Drawer Bottom Drawer Back Key: NL = Nominal Side Length LT = Inside Cabinet Depth Internal Width of Cabinet 37 LT=NL+5 4 Cabinet edge 224 37 4 25 37 6.3 128 Ø 16mm LW-16 NL-20 16mm LW-16 h=148 27 16 Min37 25 Min195 LW-16 32 57.5 20.5 12 12 32 32 22 32 32 32 175 h=148 LW Drawer back Min57.5 32 32 32 550mm 500mm 450mm 400mm 350mm 300mm 250mm Nominal Length
UltraSlim™ Drawer System 08 © Copyright 2025 All Rights Reserved. Specifications subject to change without notice. UltraSlim™ Drawer System | Assembly Instructions Assembly Instructions Mounting Front Fixing Brackets Remember to tighten 175mm Drawer Pictured 175mm Drawer Pictured 175mm Drawer Pictured Loosen screw, then remove Loosen second fastening screw Loosen/tighten third screw to adjust Removing Front Fixing Brackets Front Panel Height Adjustment ±2mm
UltraSlim™ Drawer System 09 1300 121 800 | www.dorsetaustralia.com.au © Copyright 2025 All Rights Reserved. Specifications subject to change without notice. UltraSlim™ Drawer System | Assembly Instructions Assembly Instructions Front Left & Right Panel Adjustment ±1mm Put on Cover Assembling & Mounting the Drawer 175mm Drawer Pictured 175mm Drawer Pictured Loosen 1st & 4th Screws 175mm Drawer Pictured Push the drawer shut sharply, then push it sharply a second time to ensure runner is fully locked on
UltraSlim™ Drawer System 10 © Copyright 2025 All Rights Reserved. Specifications subject to change without notice. Assembly Instructions UltraSlim™ Drawer System | Assembly Instructions 90 Drawer Module Box Assembly 128 Drawer Module Box Assembly Removing the Drawer Pull out the drawer, press on the release tabs under the drawer & pull the drawer forward slightly This should release the drawer, so you can carefully lift it out.
UltraSlim™ Drawer System 11 1300 121 800 | www.dorsetaustralia.com.au © Copyright 2025 All Rights Reserved. Specifications subject to change without notice. Assembly Instructions UltraSlim™ Drawer System | Assembly Instructions 175 Drawer Module Box Assembly Runner Installation 550mm 500mm 450mm 400mm 350mm 300mm 250mm Nominal Length KEY: Cabinet edge 224 37 4 25 37 6.3 128 Ø Particleboard Screw SPB3516.ZP (or SPB4216.ZP - Recommended for light-weight board) ES10PH.ZP or ES360.115.ZP Euro Screw
Head Office & Distribution Centre: Postal Address: Phone: 1300 121 800 | Fax: 1300 121 850 Email: hello@dorsetaustralia.com.au 143 Allingham Street, Golden Square VIC 3555, Australia PO Box 2290, Bendigo VIC 3554 www.dorsetaustralia.com.au Part No. MKTG.USDB
